  Products >> Ferrite Magnet or Ceramic Magnet >> Injection Ferrite


Product Name

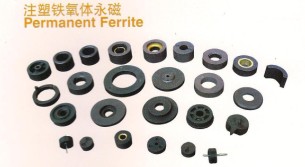

Injection Ferrite Magnets

Details Introduction





Performance grades

FOI-4T

FOI-12

FOI-14

FOI-16

Residual magnetic flux density Br mT

135-155
1.35-1.55

245-265
2.45-2.65

255-280
2.55-2.80

280-295
2.80-2.95

Coercivity Hcb kA / m

80-105
1.00-1.32

170-210
2.14-2.64

175-200
2.20-2.51

180-200
2.26-2.51

Intrinsic coercivity Hcj kA / m

145-190
1.82-2.39

210-247
2.64-3.10

220-260
2.76-3.27

200-230
2.64-2.89

Maximum energy product (BH) max kj / m3

3.0-5.0
0.4-0.6

11.1-13.0
1.4-1.6

13.1-15.0
1.6-1.9

15.5-16.3
1.95-2.05

Reversible temperature coefficient of remanence
% /

-0.2

-0.18

-0.18

-0.18

Density g / cm 3

3.5-3.7

3.3-3.7

3.6-3.8

3.65-3.8

1, T for the isotropic material
2, each material grade can be selected according to customer requirements of different polymer plastics, such as PA6, PA12, PPS, etc., the corresponding products of the highest operating temperature: PA6: 150 ; PA12: 120 ; PPS: 180 .
Injection ferrite magnets is to use ferrite powder mixed with polymer plastic by injection molding mold the shape of permanent magnet for a variety of products, oriented in the molding process to get the sex products.
