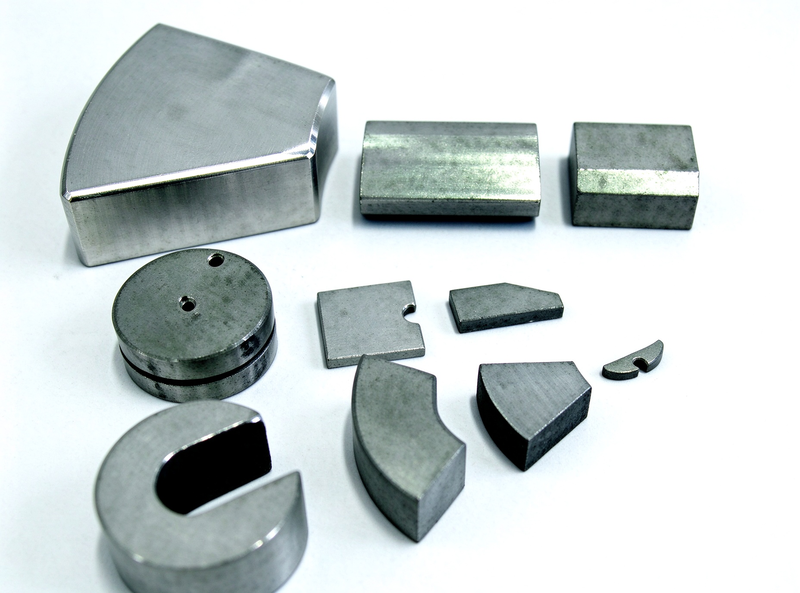

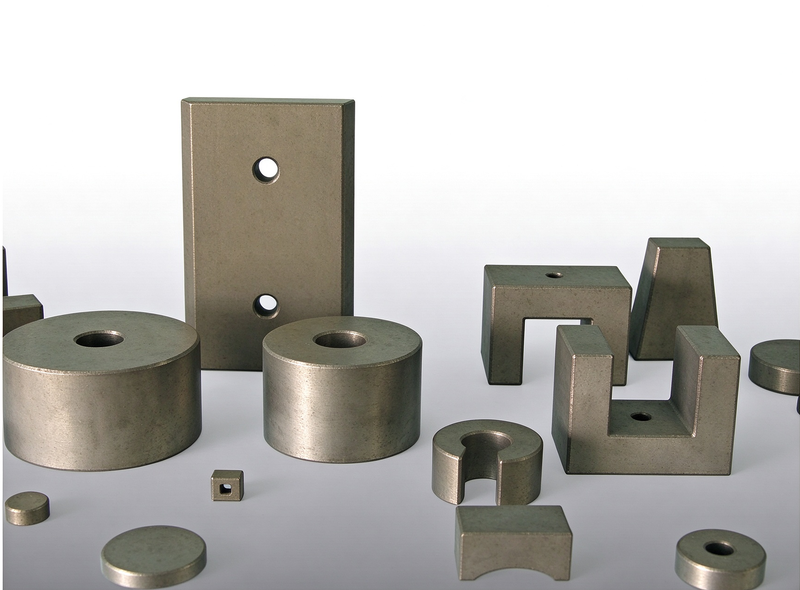

Irregular SmCo magnets include trapezoids, stepped shapes, wedges and parts with holes for high-temperature instruments and special assemblies.
Each part is produced from your drawing with grinding where precision is required.
Key Specifications
| Specification | Value |
|---|---|
| Grades | Sm1Co5, Sm2Co17 |
| Shapes | Trapezoid, step, wedge, holed |
| Max working temp | Up to 350 °C |
| Tolerance | ±0.05 mm on ground surfaces |
| Applications | Special instruments, defence, aerospace |
All magnets are produced to order. Please provide grade, dimension (or drawing), magnetization direction, coating and quantity for quotation. Email sales@polemagnet.com or use the inquiry form — we reply within 24 hours.
FAQ
Irregular & Custom SmCo Magnets — FAQ
Can irregular SmCo shapes be machined with holes?
Yes, drilling and contour grinding are available. SmCo is hard and brittle, so our engineers review hole positions against wall thickness.
What is the minimum order quantity for custom SmCo parts?
SmCo is usually ordered in smaller volumes; we accept from sample quantities upward and scale pricing by volume.
Do you provide free samples for testing?
Yes, sample orders are welcome. Send your drawing or specification together with the intended application so our engineers can recommend the correct grade, magnetization direction and coating before we prepare samples.
Can the factory produce to my drawing with special tolerances?
Yes. We machine, grind and inspect to customer drawing tolerances. For sintered NdFeB the standard machining tolerance is ±0.05 mm and can be tightened to ±0.02 mm with diamond grinding where the geometry allows.
